Turn Plastic Waste into Durable, Useful Products

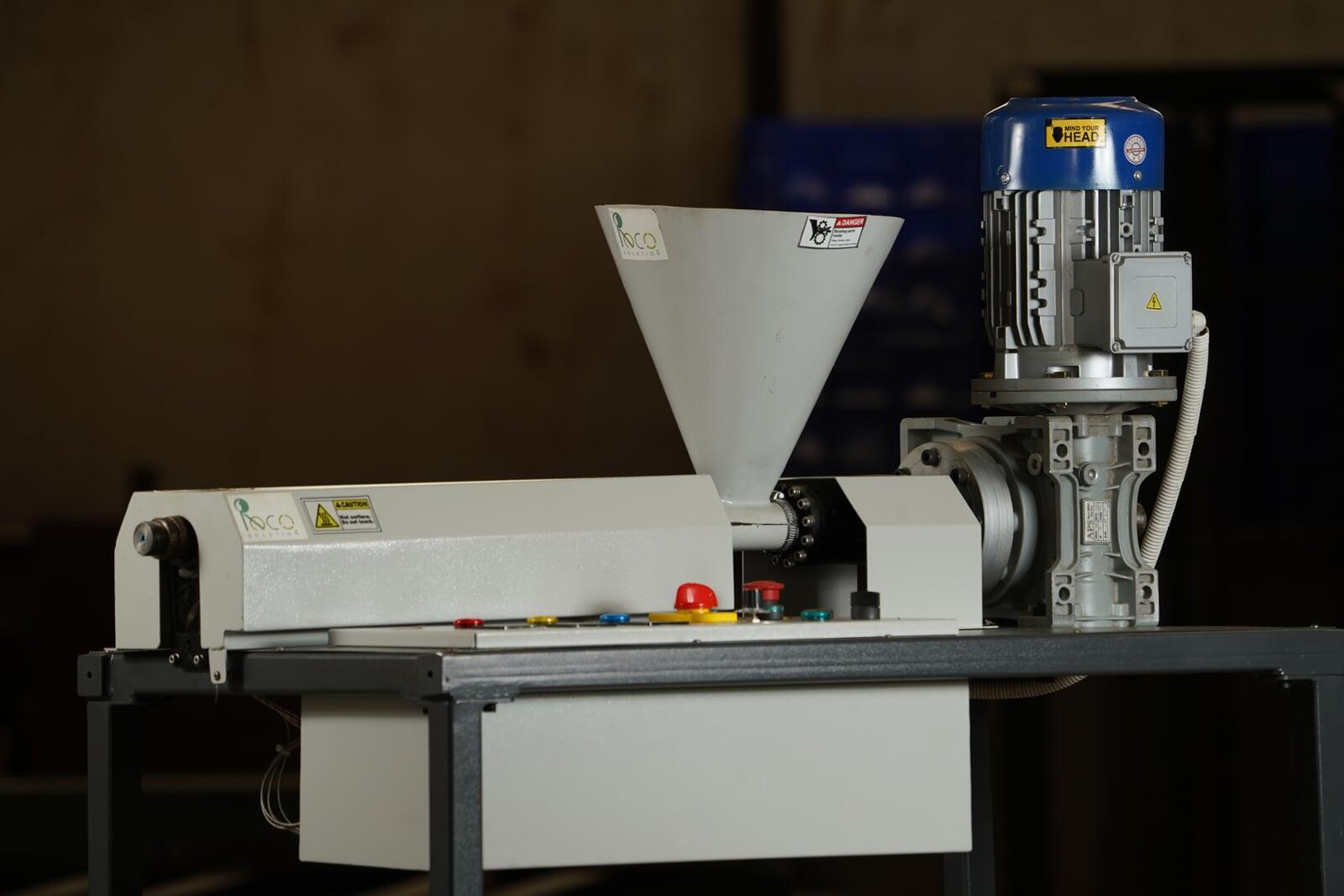

Transform mixed and difficult-to-recycle plastic waste into valuable plastic lumber, profiles, posts and other solid products with RecoSolution's Plastic Recycling Extruder. Designed for recycling applications, our extrusion systems provide a practical solution for processing various plastic waste streams and converting them into consistent, reusable products.

REQUEST QUOTE NOW

Compatible Plastic Materials...

Conventional extrusion systems require well-sorted materials. Our Plastic Recycling Extruder is designed to process suitable recycled plastics into durable products with a simplified workflow.

		HIGH DENSITY POLYETHYLENE
		LOW DENSITY POLYETHYLENE
		POLYETHYLENE
		POLYSTYRENE
		OTHER PLASTICS

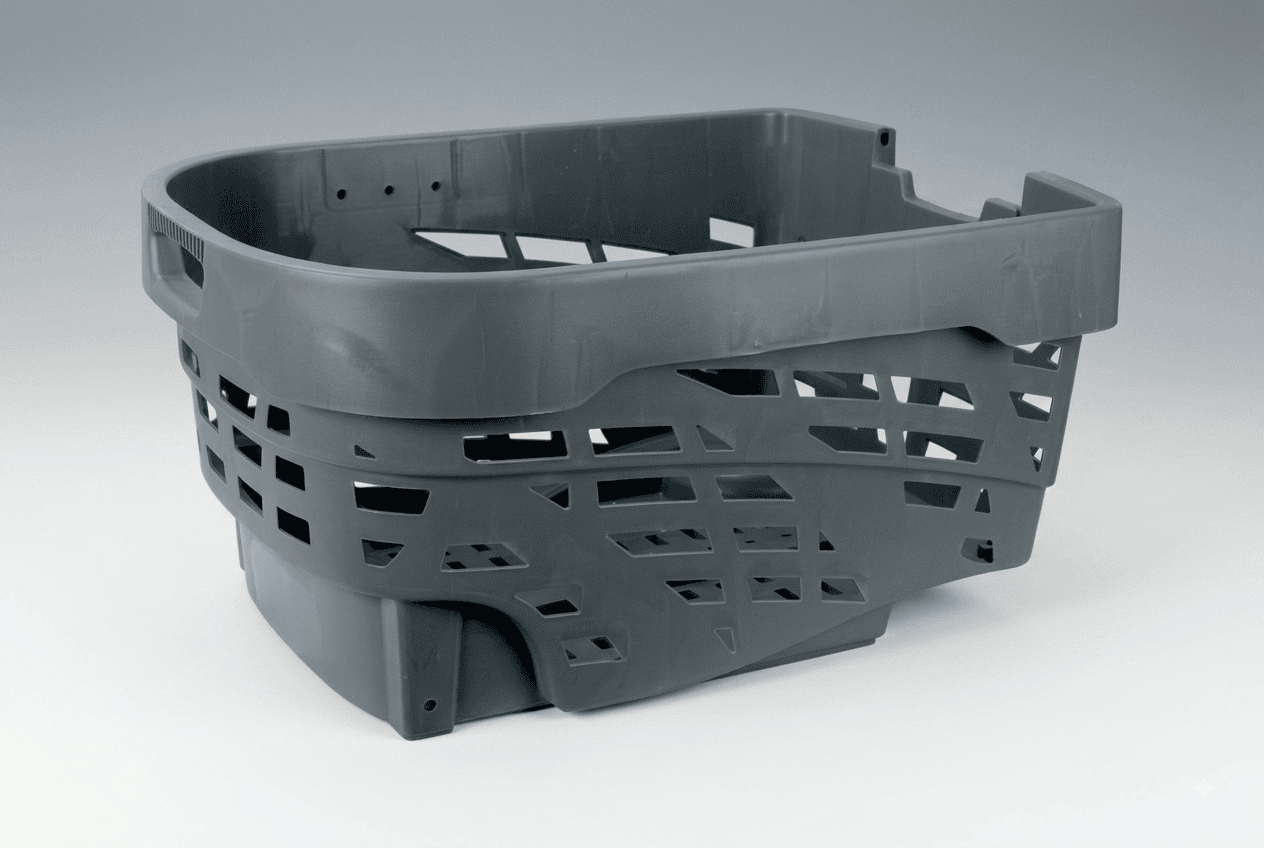

One Extruder. Multiple Outcomes.

The extrusion system can be configured according to what you want to manufacture.

Lumps

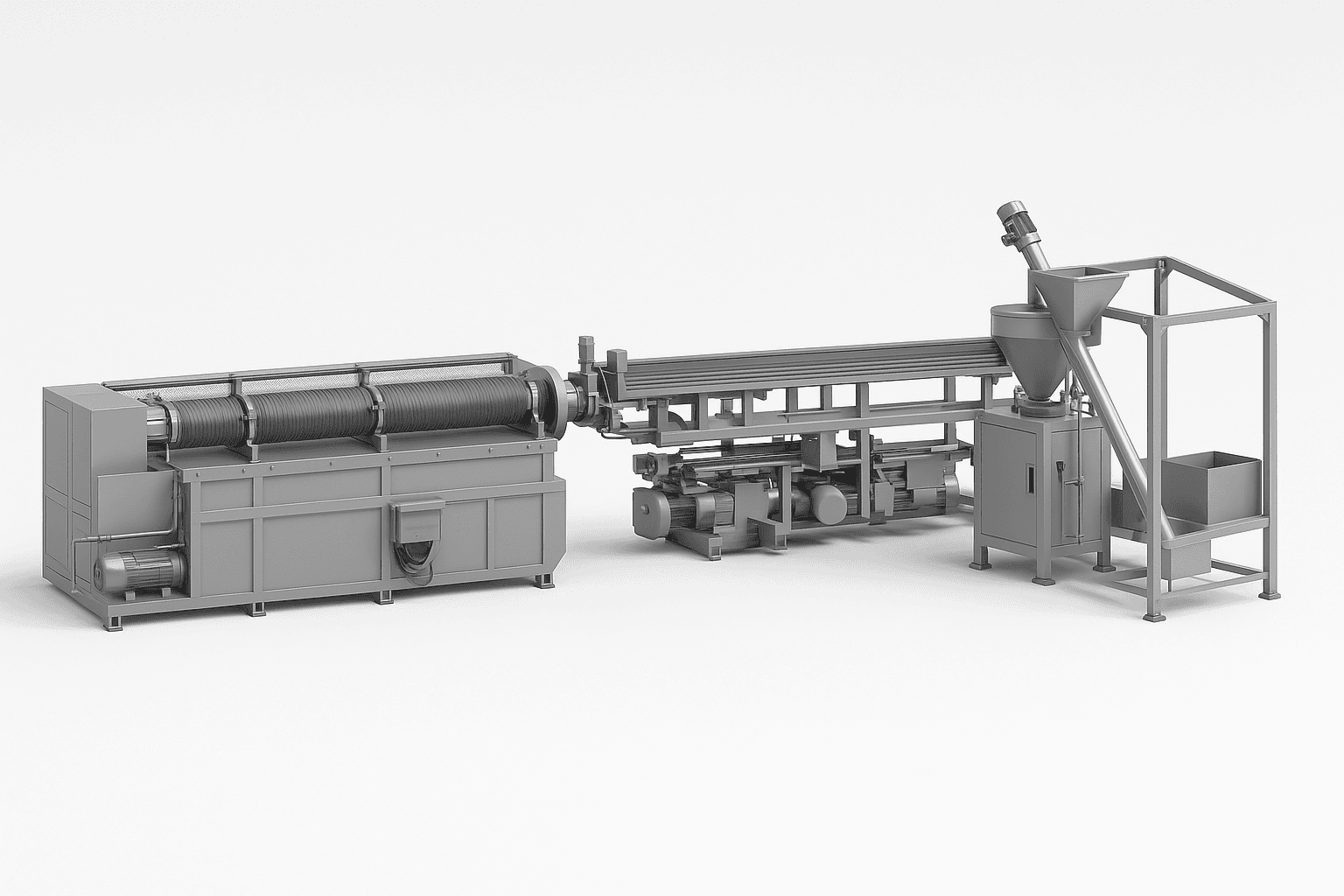

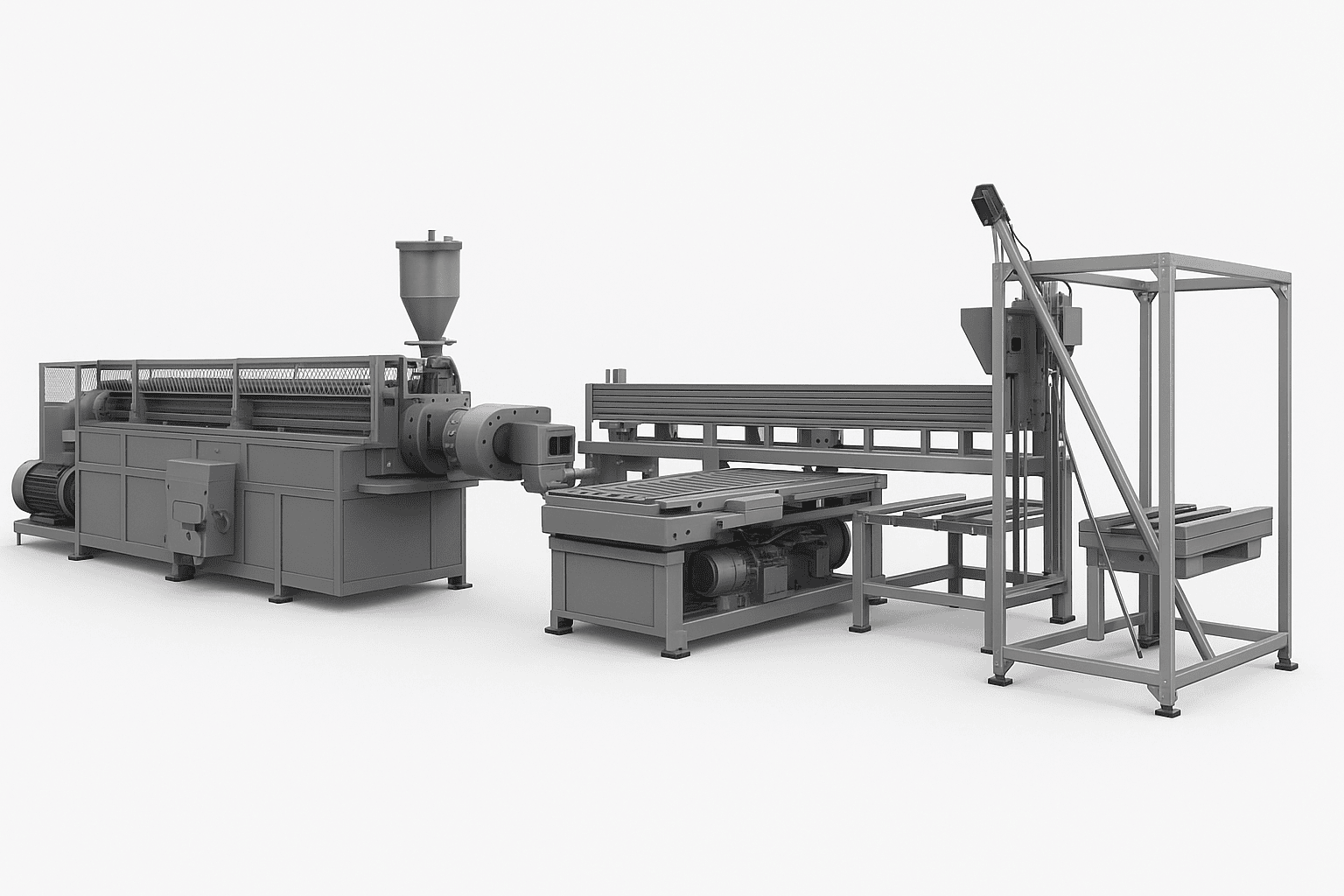

Plastic Waste Lumber

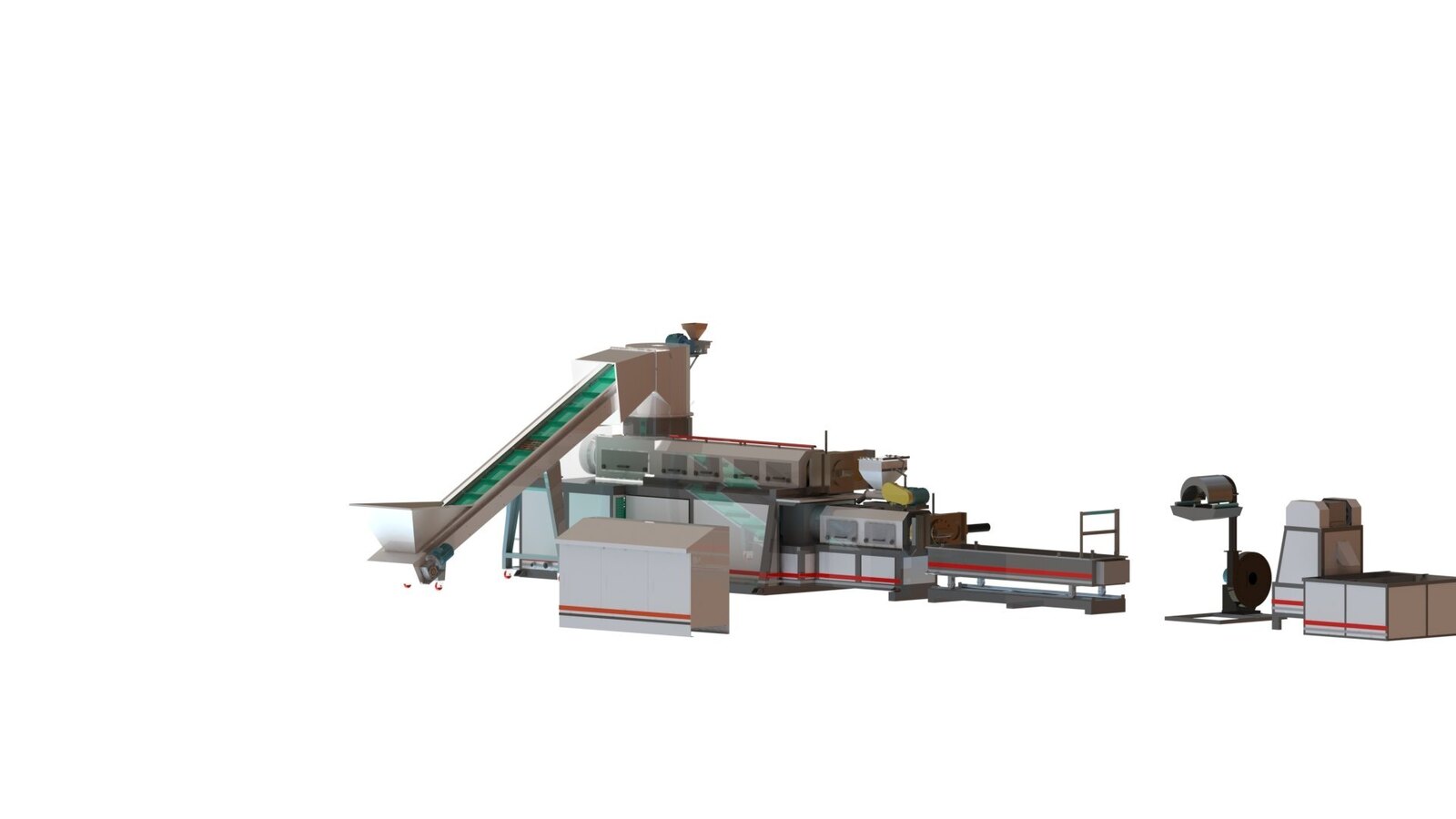

Granules

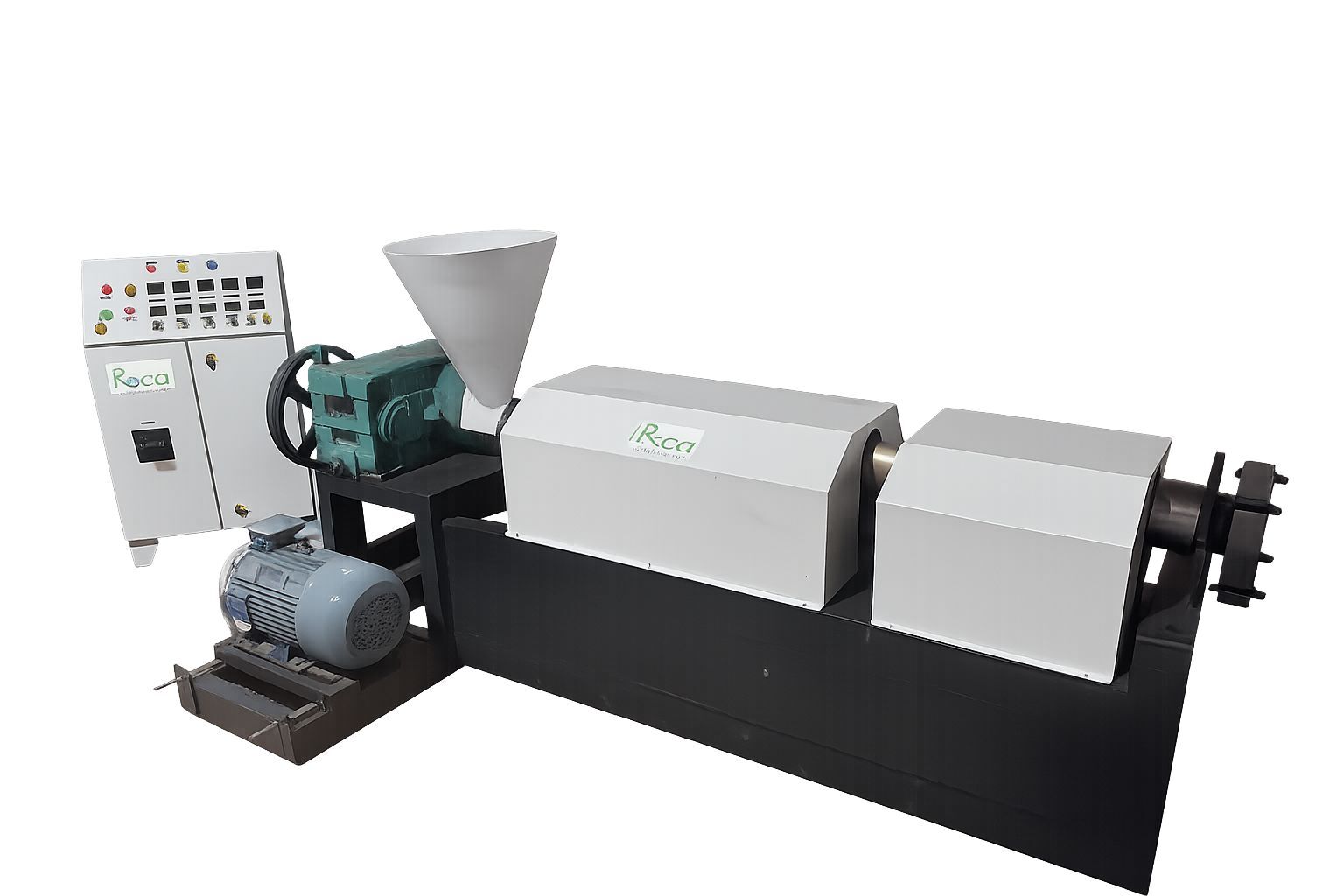

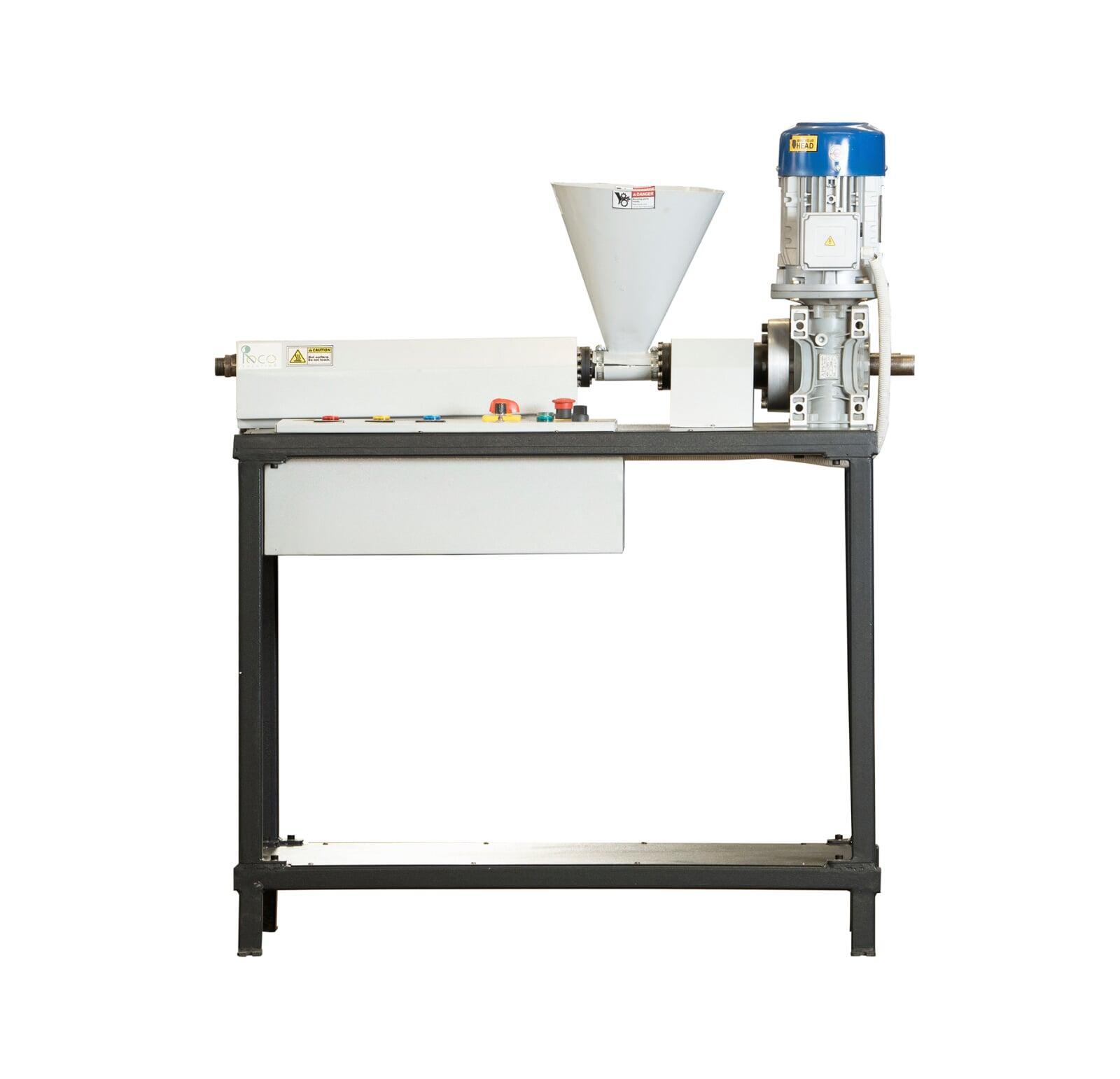

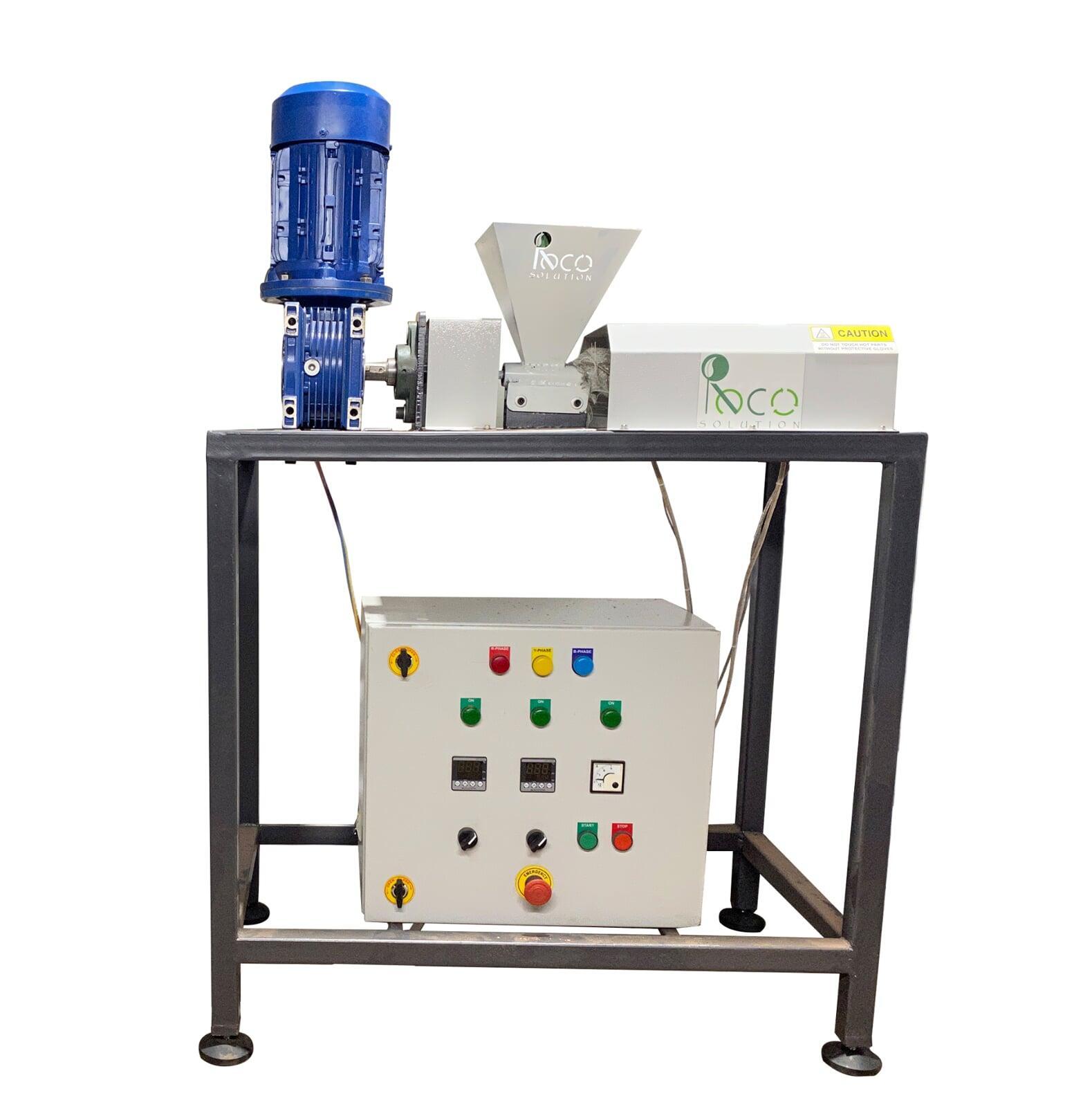

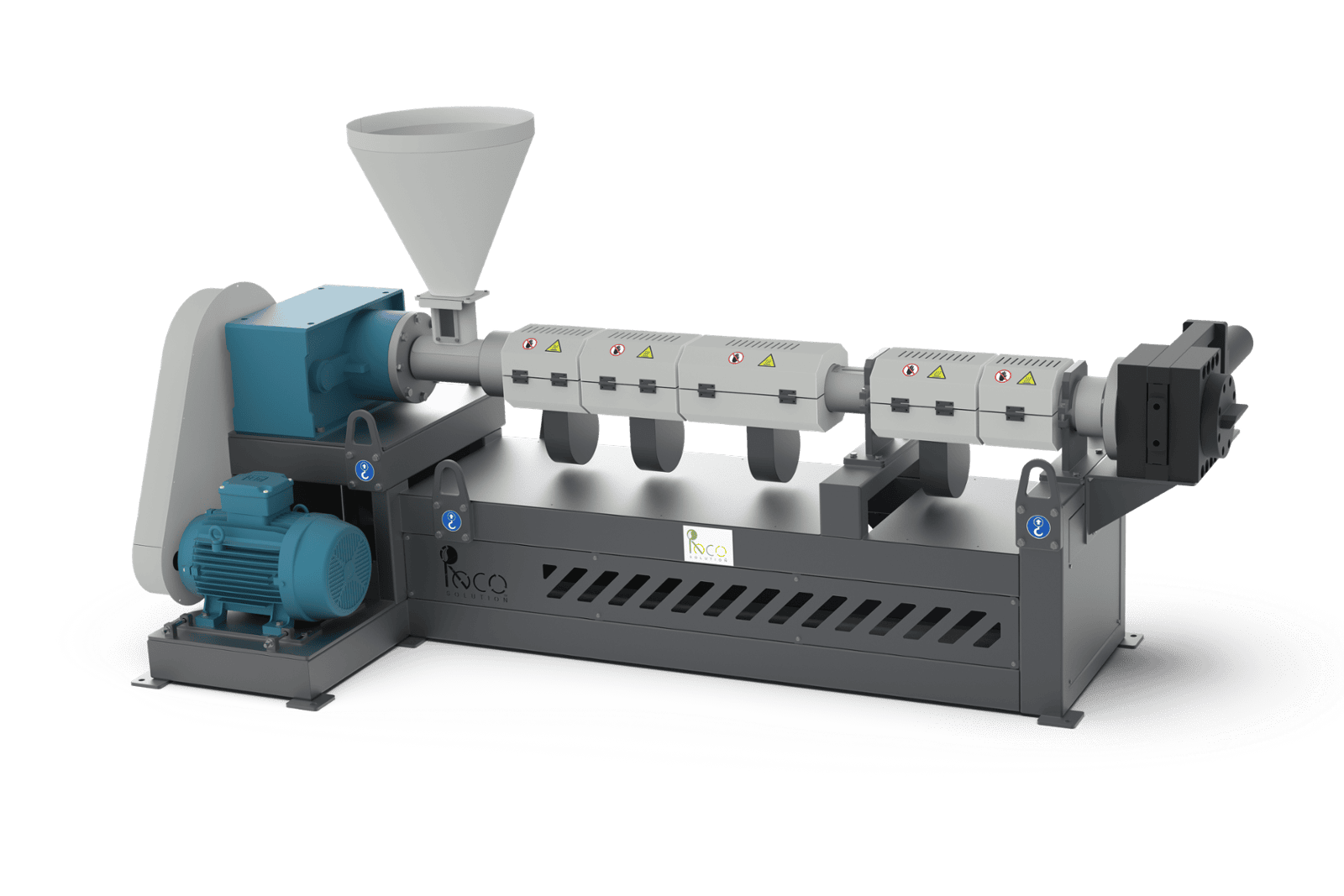

Extrusion Models

Model	Motor HP	Total HP	Capacity (Kg/Hr)
2275	20	35	50-80
27100	30	45	75-100
30100	40	70	100-150
34115	60	85	120-160
36120	60	85	120-180
40135	100	175	220-280

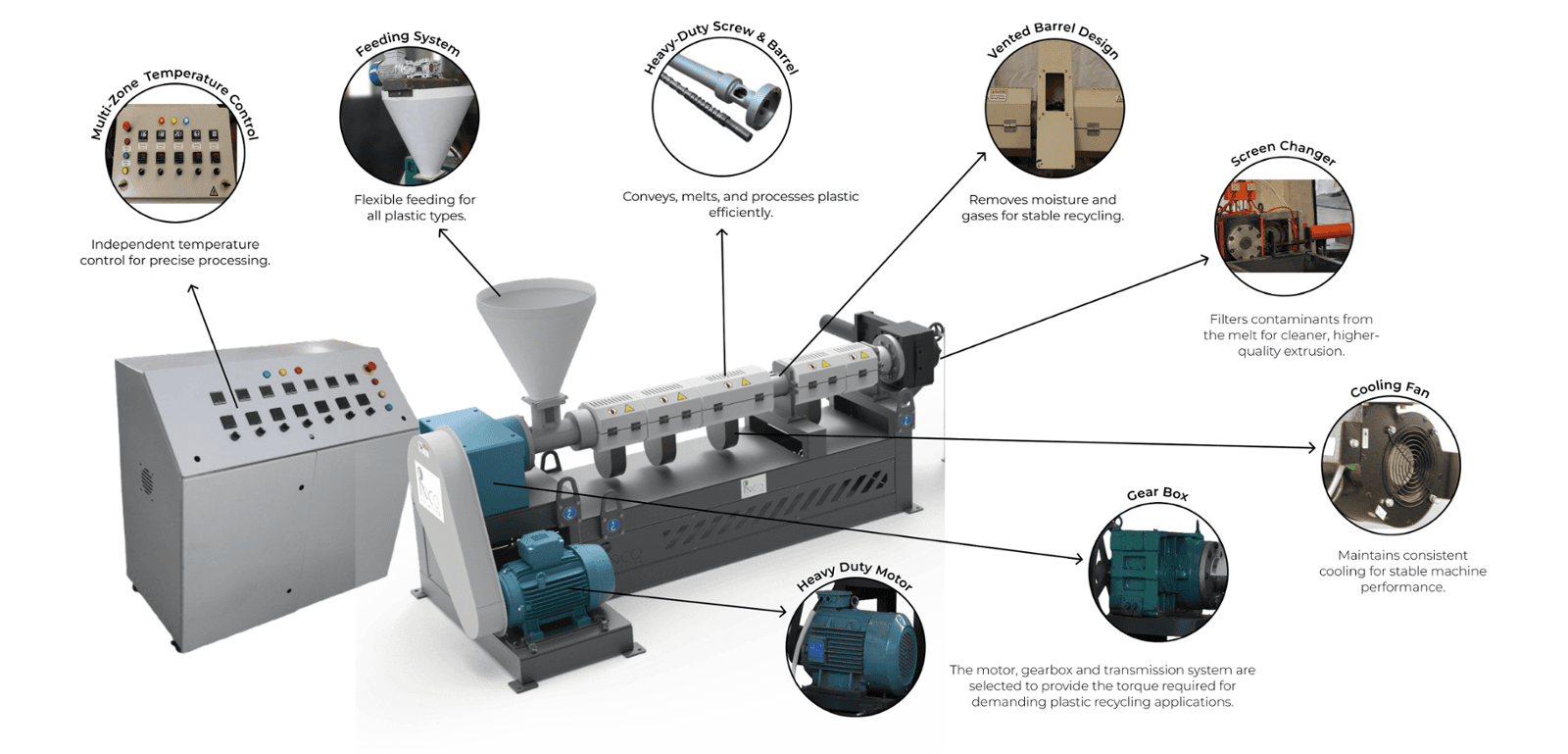

Extruder Configurations

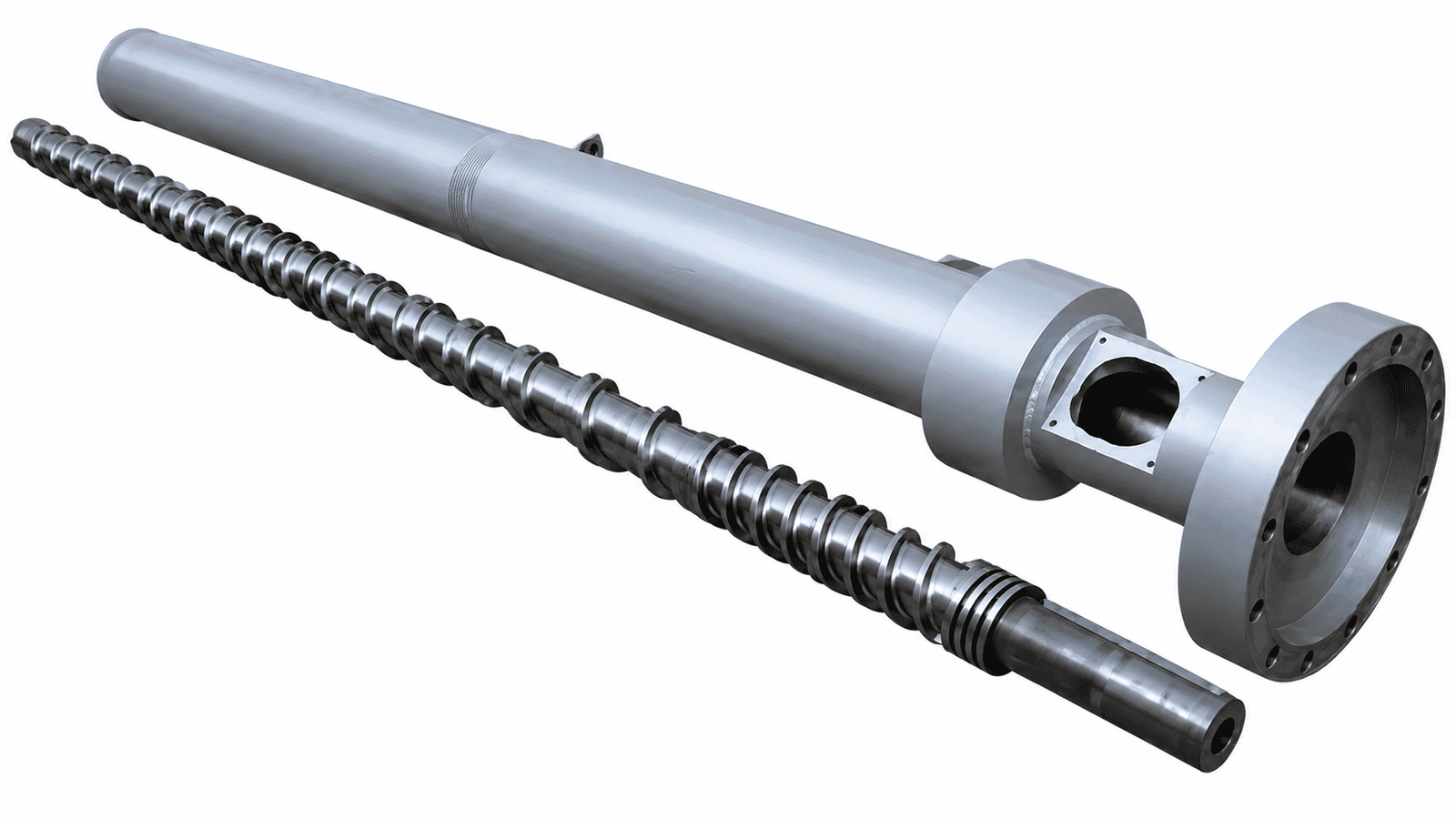

Heavy-Duty Screw & Barrel

Conveys, compresses, melts and extrudes plastic with consistent performance.

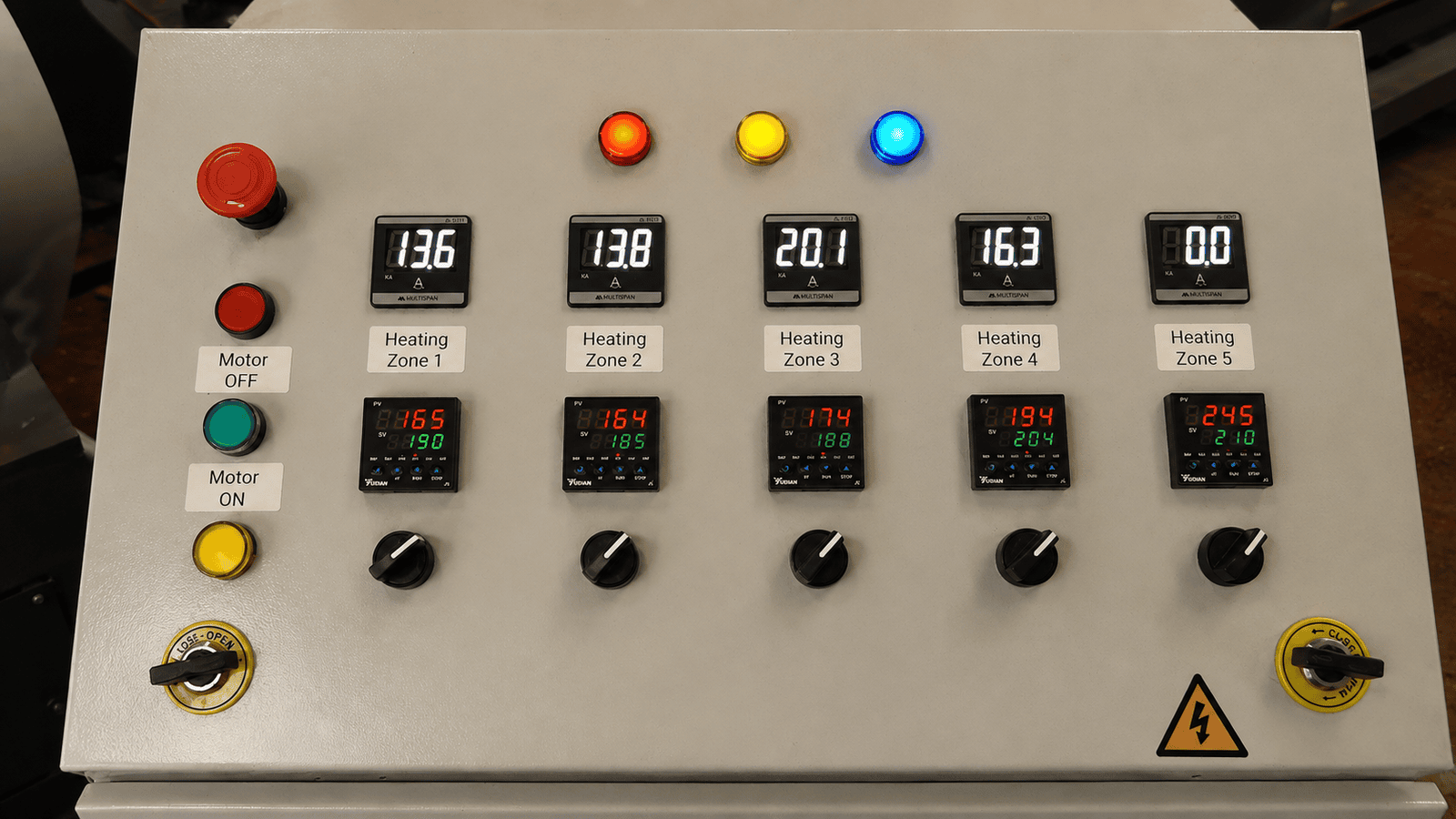

Multi-Zone Temperature Control

Independent heating zones ensure precise temperature control for every material.

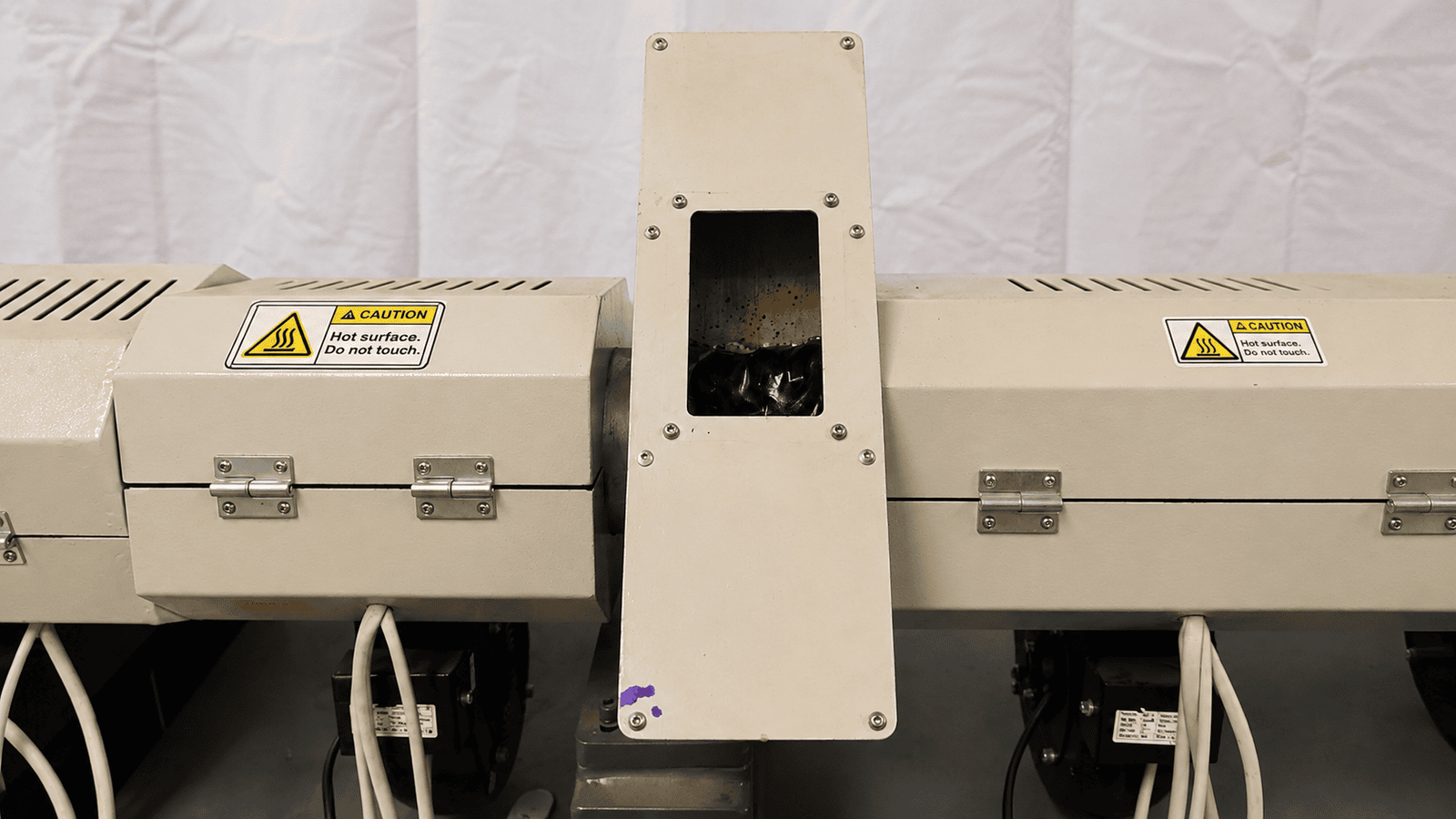

Vented Barrel Design

Removes moisture and trapped gases for stable recycled plastic processing.

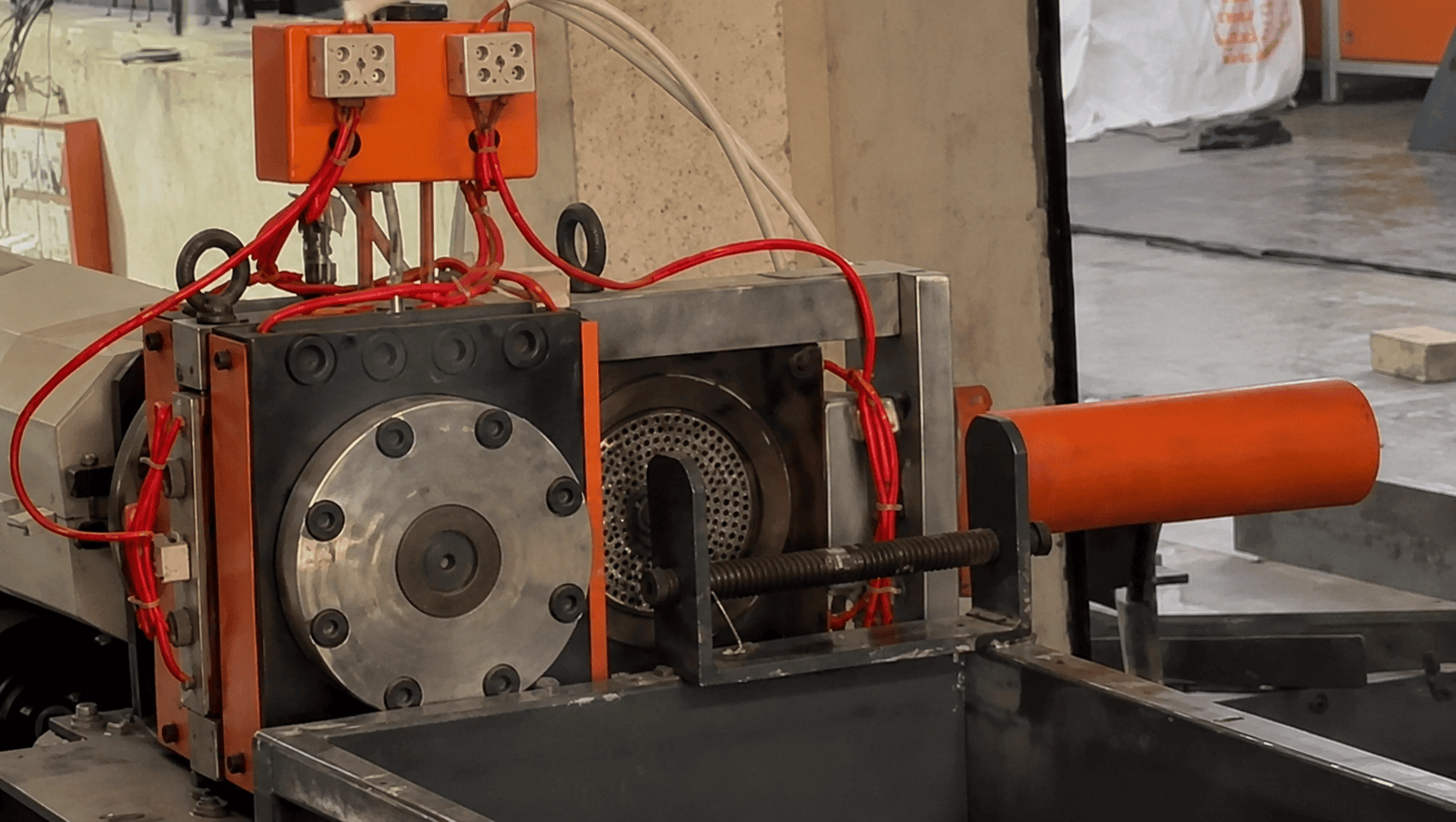

Screen Changer

Filters contaminants from the melt for cleaner, higher-quality extrusion.

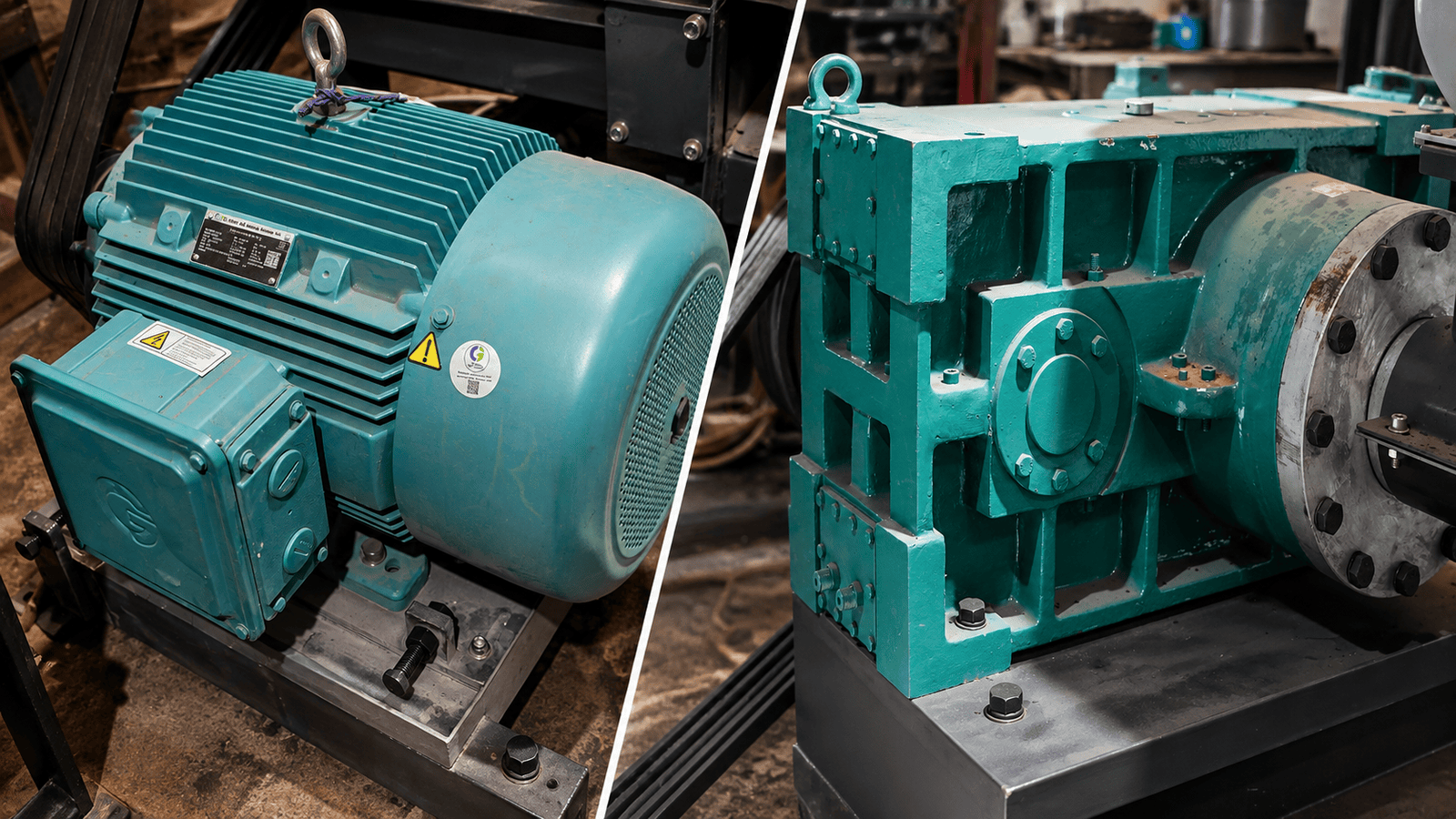

Heavy-Duty Drive System

High-torque motor and gearbox deliver reliable power for continuous operation.

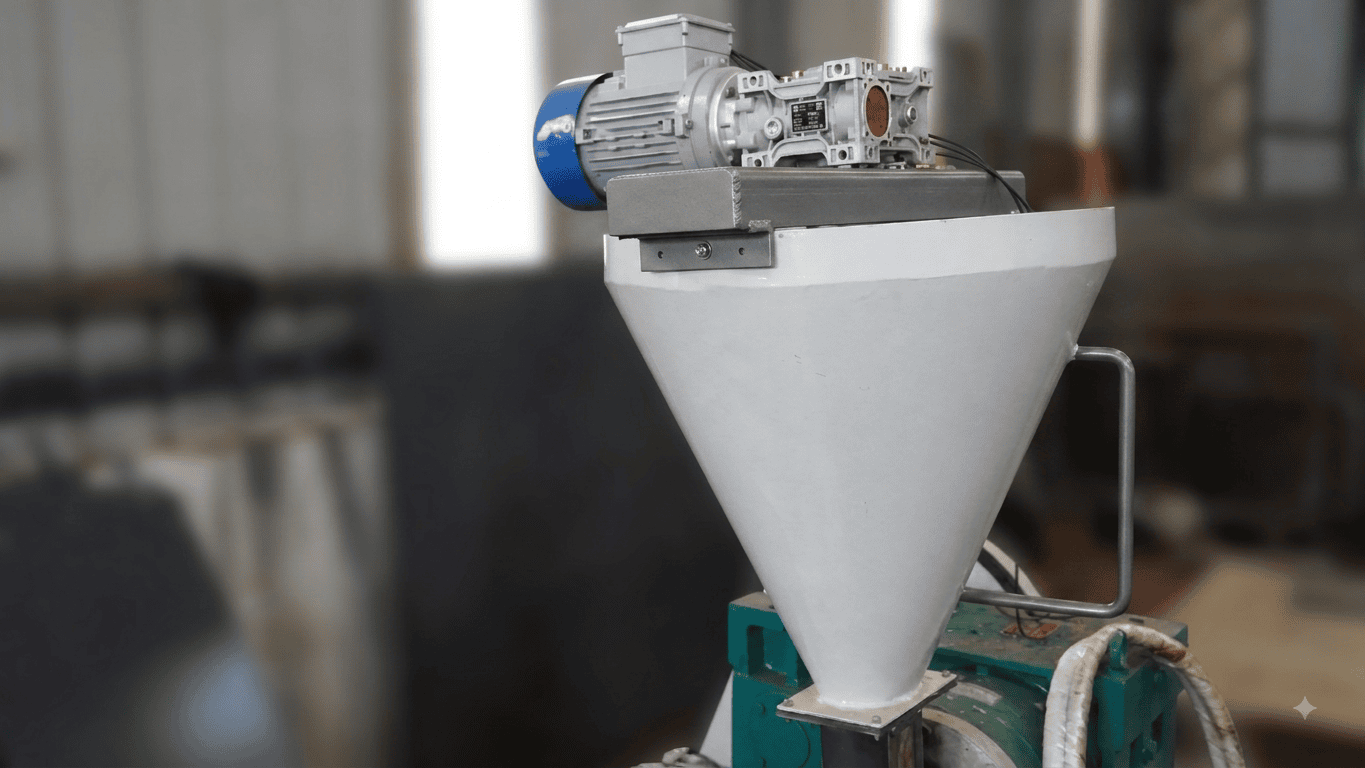

Force Feeding System

Optimized feeding ensures smooth and consistent material flow.

Not Sure Whether Your Plastic Can Be Extruded?

Send us the details of your plastic waste — material type, photos or videos, available quantity, current form, desired finished product and required production capacity. Our team will evaluate your application and recommend a suitable processing route.

Discuss Your Material With Us

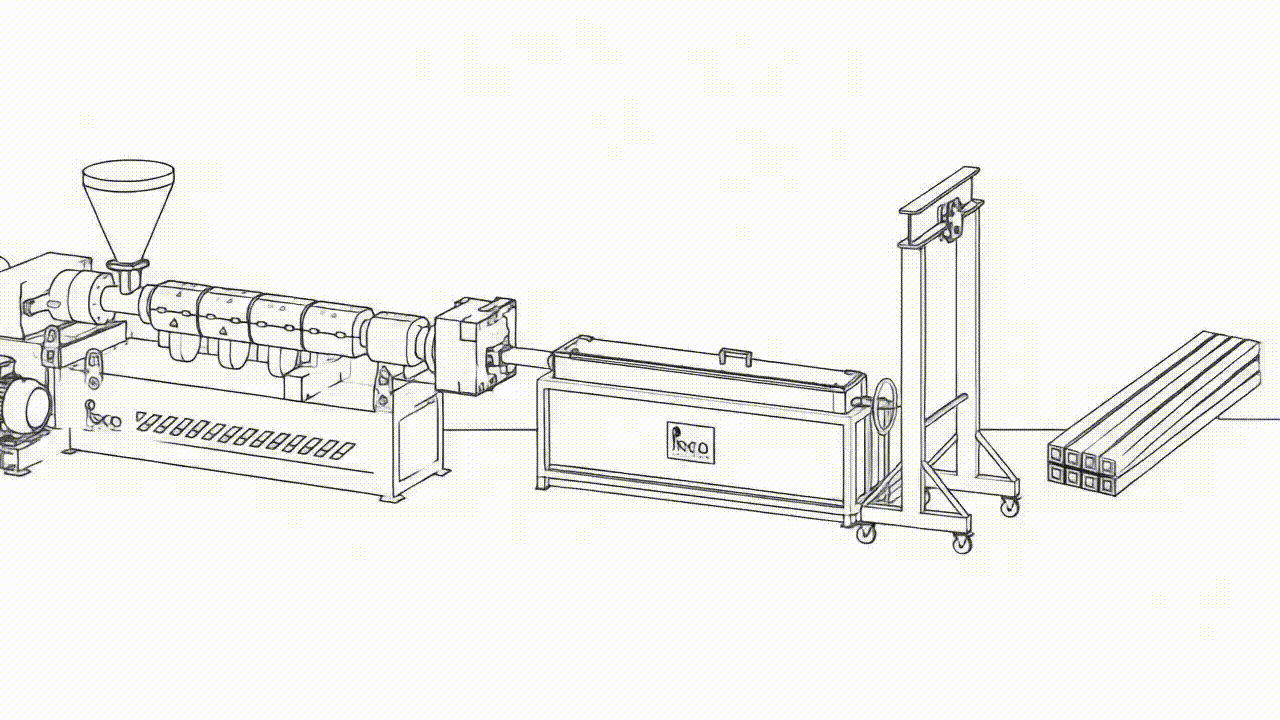

See the Extruder System in Action

From a Single Extruder to a Complete Recycling Plant

RecoSolution can support more than just the main extrusion machine. A complete system can be configured with a De-Duster, Plastic Washer, Plastic Dryer, Grinder, Agglomerator, Plastic Recycling Extruder, Dies/Molds and a Cooling & Handling System — taking your waste all the way to a finished recycled product. The exact configuration is selected according to your raw material and required final product.

See Our Other Machines

Frequently Asked Questions

What types of plastic can be processed in the extruder?

Our extrusion machines can process suitable thermoplastics including HDPE, LDPE, PP, mixed polyolefins, MLP and selected compatible plastics. Material suitability depends on composition, contamination, moisture and the intended final output.

Can the extruder process mixed plastic waste?

Yes. Suitable mixed plastic waste can be processed for applications such as plastic lumber and hot plastic lump for mold pressing. Incompatible plastics and excessive contamination should be removed before processing.

What can I produce using the extrusion machine?

Our extrusion technology can be configured for three main outputs:

Plastic Lump – for hydraulic mold pressing
Plastic Lumber – solid profiles, posts and sections
Recycled Granules – from suitable rigid plastic waste

What production capacities are available?

Our standard extruder range covers approximately 50–280 kg/hr, depending on the machine model, raw material and application. Higher capacities can be achieved through customized or multiple-extruder configurations.

Can the same extruder produce lump, lumber and granules?

The core extrusion principle is similar, but the feeding system, screw configuration, filtration, die and downstream equipment may differ. We recommend selecting the machine configuration according to the intended raw material and final output.

Does plastic need to be washed, dried or shredded before extrusion?

The material should be appropriately sorted, size-reduced, clean and reasonably dry before extrusion. Depending on the waste stream, grinding, washing, drying or agglomeration may be required for stable processing.

What power supply is required for the extrusion machine?

Power requirement depends on the selected extruder model, motor capacity, heating system and auxiliary equipment. Machines can be configured according to the industrial voltage and frequency of the destination country, subject to technical confirmation.

What is the purpose of the vented barrel and hydraulic screen changer?

The vented barrel helps release moisture, trapped air and gases generated during processing. An optional hydraulic screen changer provides melt filtration to remove certain solid contaminants where cleaner output is required.

Can the extrusion machine be customized for my application?

Yes. The screw and barrel, feeding system, filtration, die/mold, electrical configuration, automation and downstream equipment can be selected according to your plastic waste, required output and production capacity.

How do I select the right extruder model?

Start with three key details:

What plastic do you have? → What do you want to produce? → How many kg/hr do you need?

Share your material type, photos/videos, required output (Lump, Lumber or Granules) and target capacity with us, and our team can recommend the appropriate extrusion configuration.
